Port Zante Urban Study

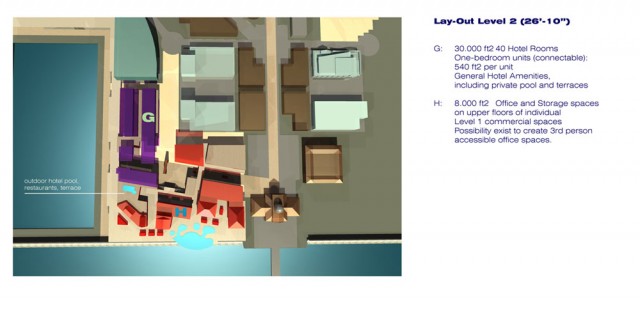

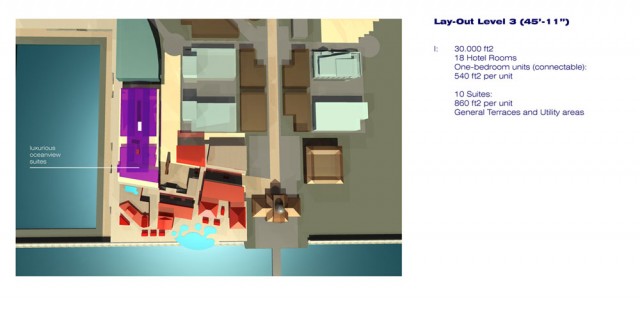

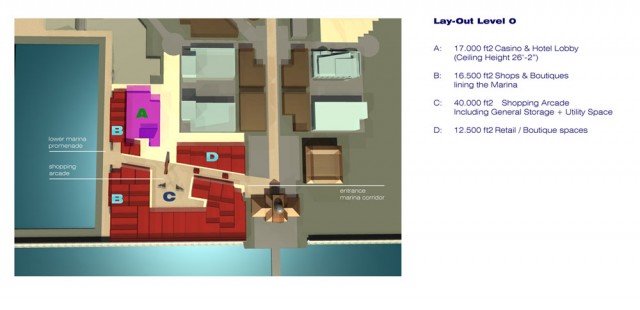

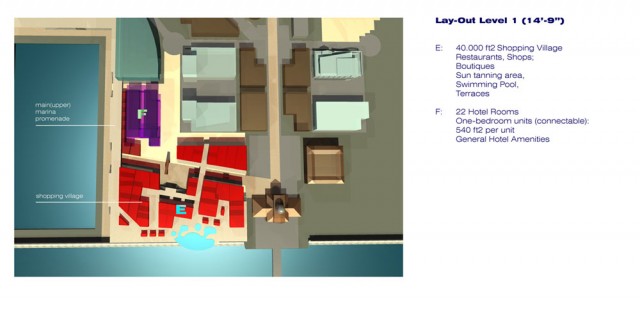

Lay-Out Level 0 A: 17.000 ft2 Casino & Hotel B: 16.500 ft2 Shops & Boutiques lining the Marina C: 40.000 ft2 Shopping Arcade Including General Storage + Utility Space D: 12.500 ft2 Retail / Boutique spaces Lay-Out Level 1 (14’-9”) E: 40.000 ft2 Shopping Village Restaurants, Shops; Boutiques Sun tanning area, Swimming Pool, Terraces F: 22 Hotel Rooms One-bedroom units (connectable): 540 ft2 per unit General Hotel Amenities Lay-Out Level 2 (26’-10”) G: 30.000 ft2 40 Hotel Rooms One-bedroom units (connectable): 540 ft2 per unit General Hotel Amenities, including private pool and terraces H: 8.000 ft2 Office and Storage spaces on upper floors of individual Level 1 commercial spaces Possibility exist to create 3rd person accessible office spaces. Lay-Out Level 3 (45’-11”) I: 30.000 ft2 18 Hotel Rooms One-bedroom units (connectable): 540 ft2 per unit 10 Suites: 860 ft2 per unit General Terraces and Utility areas
